Structural drawing set — two-storey residence on a 45×80 plot — image 1 of 41 / 4
Construction Drawings

Structural drawing set — two-storey residence on a 45×80 plot

Structural · 45x80 ft · G+1

Design code DS1140 — quote it when you call or message us.

Design fee

₹4 – ₹8 per sq ft

From our rate card

  • ₹4 per sq ft · Structural drawings · Built-up area of 4,500 sq ft or more
  • ₹8 per sq ft · Structural drawings · Built-up area under 4,500 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
Construction Drawings
Design code
DS1140
Drawing type
Structural
Plot size
45 × 80 ft
Plot area
3,600 sq ft (400 gaj)
Floors
Two floors (G+1)

About this design

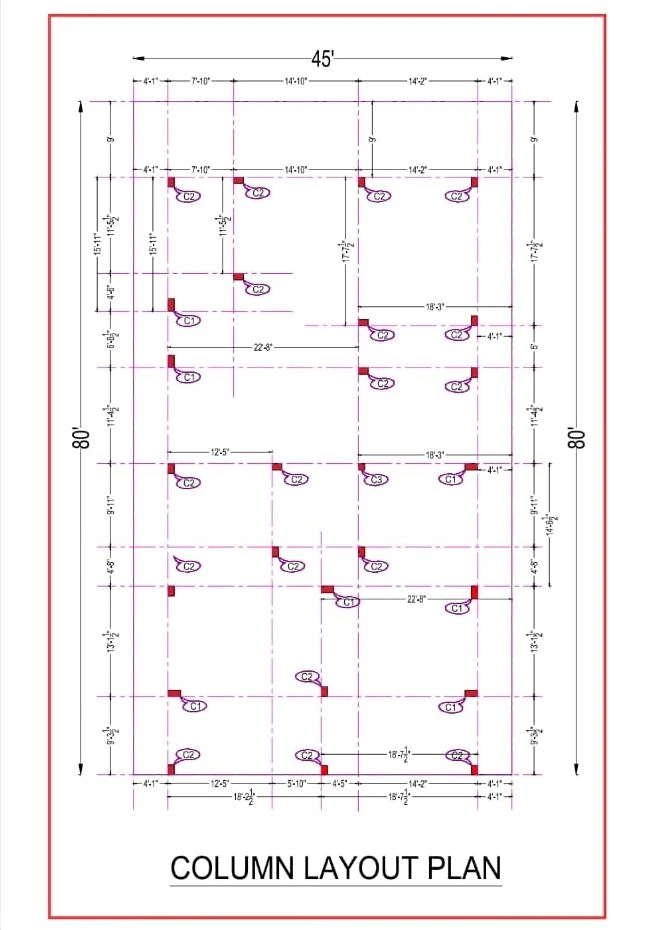

Four sheets from the structural set of a two-storey residence: the column layout on a centre-line grid over the 45×80 ft plot, the trench plan with footing pits, and two slab shuttering sheets with the slab panels and beams tagged.

  • Column layout
  • Trench plan
  • Slab shuttering details

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
