Plumbing and drainage layout — ground floor of a home on a 43×49 plot
Plumbing · 43x49 ft · G+1
Design code DS1137 — quote it when you call or message us.
Design fee
Price on request
From our rate card
- ₹1,999 · Electrical and plumbing drawings · Both layouts for one home · built-up area up to 1,250 sq ft
- Design type
- Construction Drawings
- Design code
- DS1137
- Drawing type
- Plumbing
- Plot size
- 43 × 49 ft
- Plot area
- 2,107 sq ft (234 gaj)
- Floors
- Two floors (G+1)
About this design

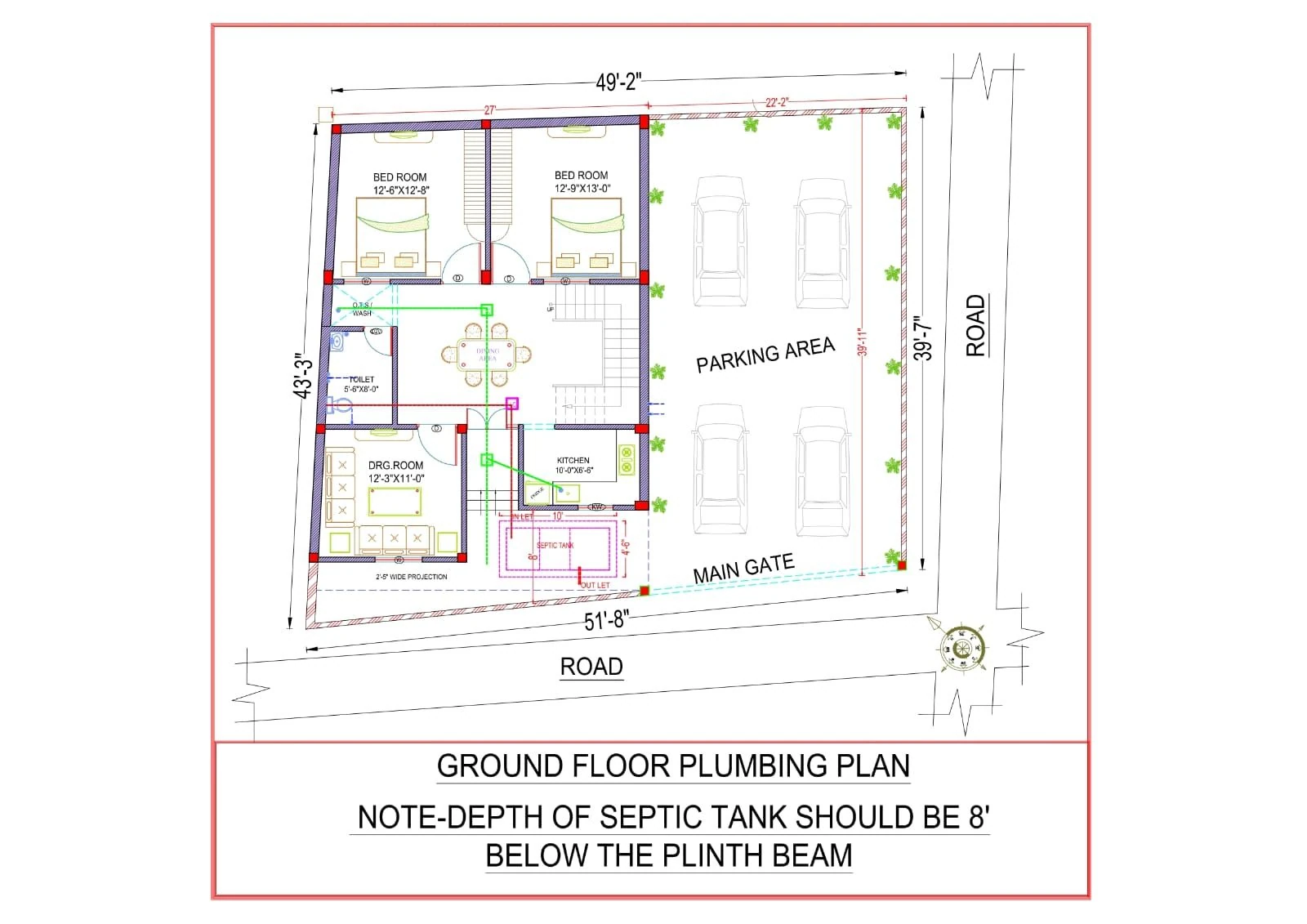

Ground floor plumbing plan drawn over the furniture layout: the soil line from the toilet runs through a chamber to the septic tank in the front set-back, with its inlet and outlet marked; the waste lines from the wash area and the kitchen sink run through two chambers to the front of the plot.
- Soil and waste lines
- Drain chambers
- Septic tank with inlet and outlet
Questions about this design
Can you prepare these drawings for my house?
Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.
What happens after I send a request?
A designer calls you within one working day to understand your needs, then shares a quote and timeline.
