Structural drawing set — two-storey building on a 22×57 plot

Structural · 22x57 ft · G+1

Design code DS1142 — quote it when you call or message us.

Design fee

₹4 – ₹8 per sq ft

From our rate card

  • ₹4 per sq ft · Structural drawings · Built-up area of 4,500 sq ft or more
  • ₹8 per sq ft · Structural drawings · Built-up area under 4,500 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
Construction Drawings
Design code
DS1142
Drawing type
Structural
Plot size
22 × 57 ft
Plot area
1,254 sq ft (139 gaj)
Floors
Two floors (G+1)

About this design

Four sheets from the structural set of a two-storey building on a narrow plot: the column layout with 21 columns on centre lines, the column schedule (C1 of 9" × 1'-2" and C2 of 9" × 9" in M20 concrete), the plinth beam plan and the ground-floor slab shuttering plan.

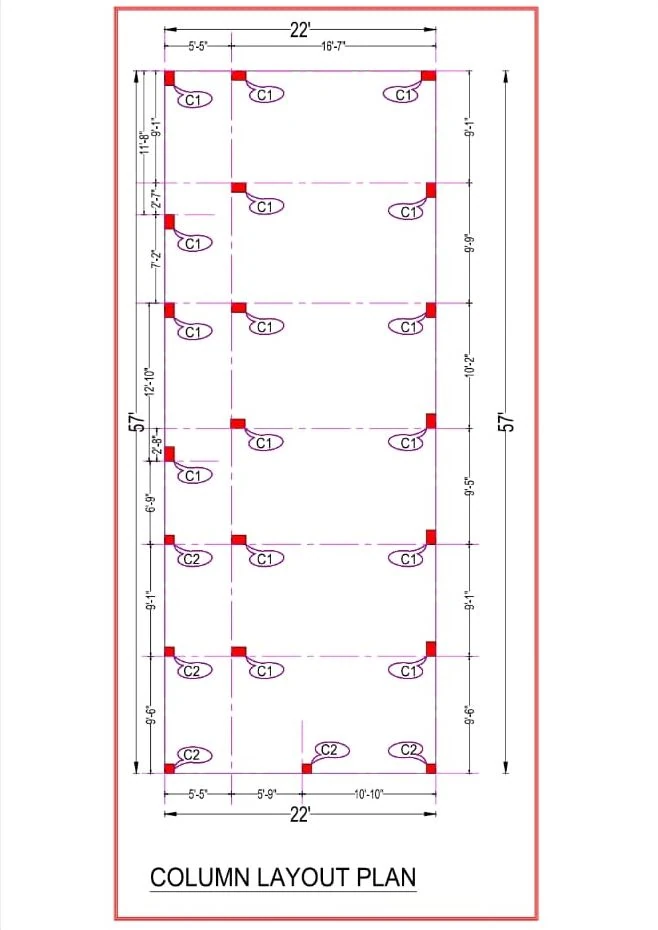

  • Column layout
  • Column schedule
  • Plinth beam plan
  • Slab shuttering plan

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
