Structural drawing set — compact home on a 28×32 plot

Structural · 28x32 ft · G+1

Design code DS1145 — quote it when you call or message us.

Design fee

₹4 – ₹8 per sq ft

From our rate card

  • ₹4 per sq ft · Structural drawings · Built-up area of 4,500 sq ft or more
  • ₹8 per sq ft · Structural drawings · Built-up area under 4,500 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
Construction Drawings
Design code
DS1145
Drawing type
Structural
Plot size
28 × 32 ft
Plot area
896 sq ft (100 gaj)
Floors
Two floors (G+1)

About this design

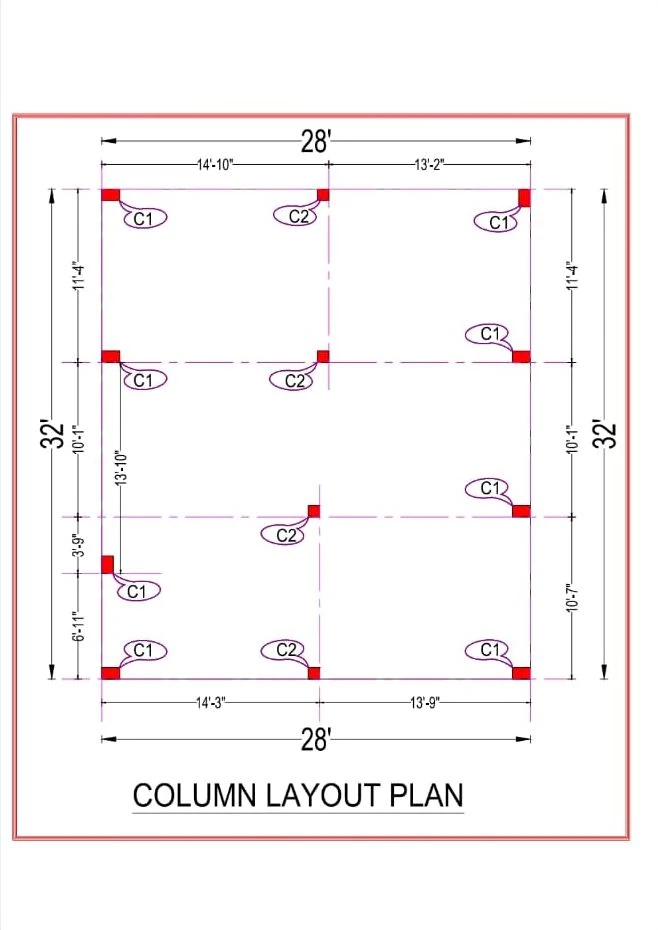

Five sheets from the structural set of a compact home: the column layout with twelve columns on centre lines, the trench plan with 4'-0" and 4'-6" footing pits, the column schedule in M20 concrete, the plinth beam details and the ground-floor slab shuttering details.

  • Column layout
  • Trench plan
  • Column schedule
  • Plinth beam details
  • Slab shuttering details

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
